Introduction
The Mandrel Handling System (MHS) is an optional feature that assists personnel in removing and installing a forming mandrel. The MHS is located above the compression area.
Tools
Parts
No parts specified.
-
-
From the Main Control screen on the HMI, do the following:
-
Touch Setup.
-
Touch Tray Setup. If the Tray Selection screen appears, select the tray that is currently loaded in the hopper.
-
Touch Blank/Mandrel Drive
-
Touch Mandrel Load Profile.
-
Touch Mandrel Load Enable Goto Position. The ram moves the mandrel into the off-loading position.
-
-
-
Loosen the two side ball knobs.
-
Pull out the guide rails.
-
Tighten the two side ball knobs.
-
-
-

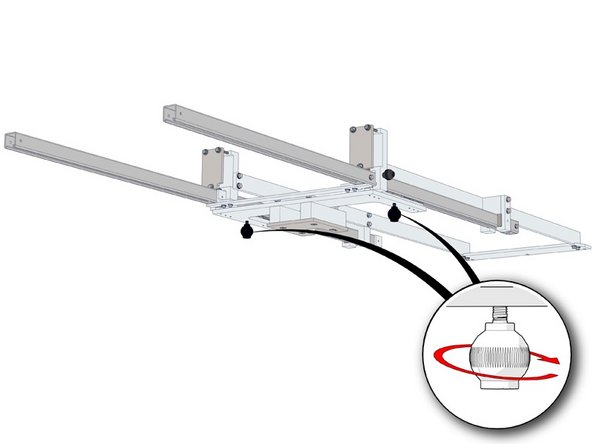

Loosen the the two ball knobs securing the mandrel trolley,
-

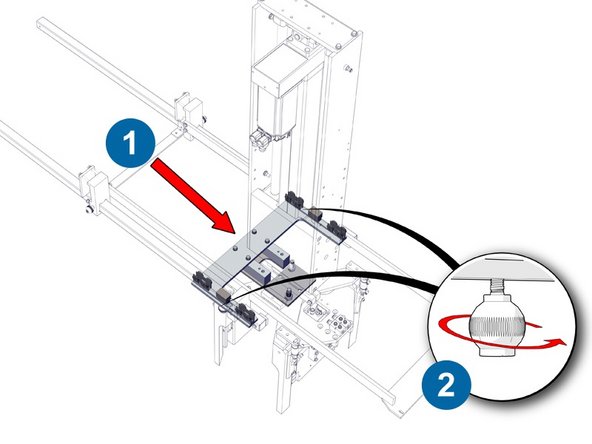

Push the mandrel trolley back against the ram mounting plate.
-
Tighten the trolley ball knobs,
-
-
-

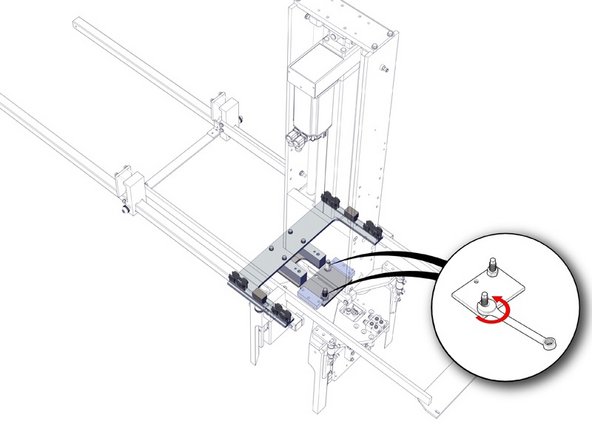

Loosen the two locking pins on the top of the ram mounting plate.
-

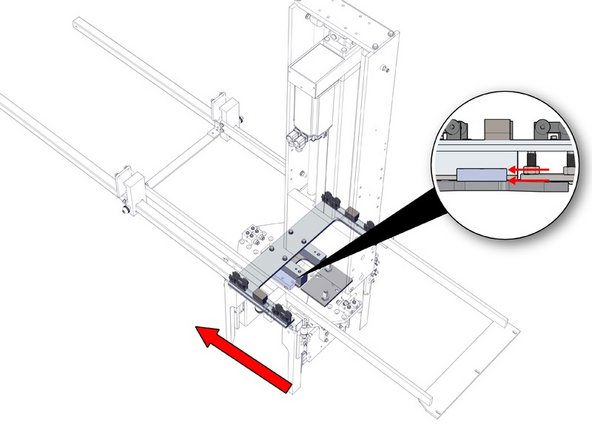

If required, disconnect any air lines from the mandrel.
-

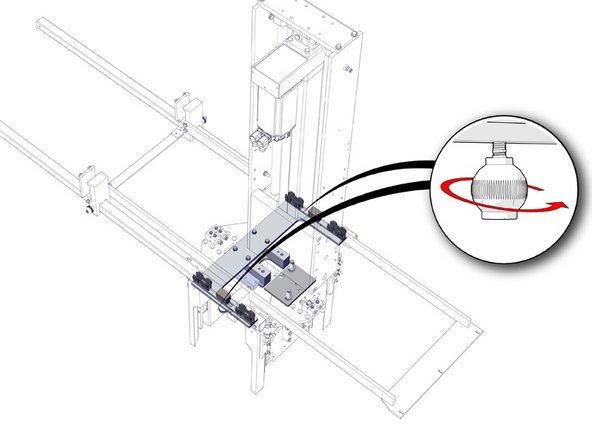

Slide the mandrel off of the ram mounting plate and onto the trolley's mounting plate.
-
Loosen the mandrel trolley ball knobs.
-
-
-

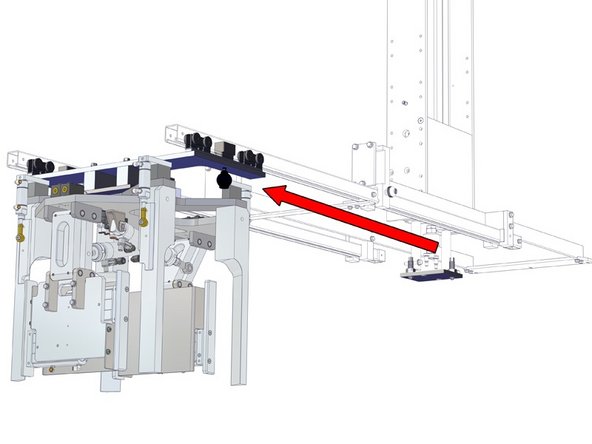

These steps may require more than one person.
-
Push the trolley and mandrel down the extension arms until the mandrel is clear of the tray former.
-
Carefully slide the mandrel off of the trolley's mounting plate.
-
To install a new mandrel, slide it onto the trolley's mounting plate and reverse the steps in this guide.
