Introduction
Get your new tape head sealing with these quick and easy steps.
Parts
-
-
Use a 5/32" wrench and 7/16" hex key to install the Tape Arm.
-
Position the Tape Arm at one of three angles:
-
Angle 1: Wexxar Erectors
-
Angle 2: 2000 Yard Tape Rolls
-
Angle 3: BEL Sealers
-
-
-
Slide on a new tape roll.
-
Ensure the roll is pushed fully onto the Tape Roll Hub.
-
-
-
WARNING! SHARP BLADE!
-

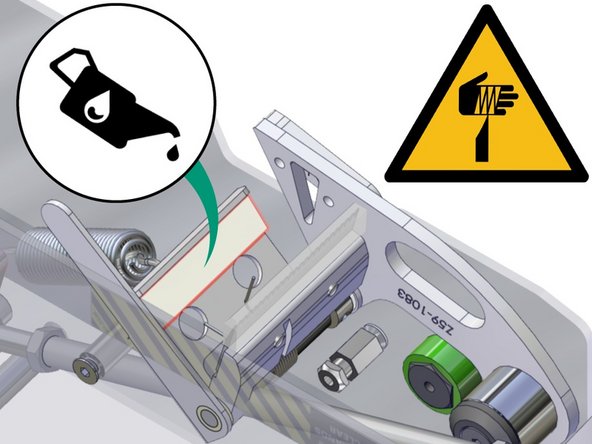

Add lubricating oil to the Blade Lubricating Pad every few days.
-
Lubricating oil will prevent build-up and extend the service life of the Blade.
-
-
-
WARNING! SHARP BLADE!
-

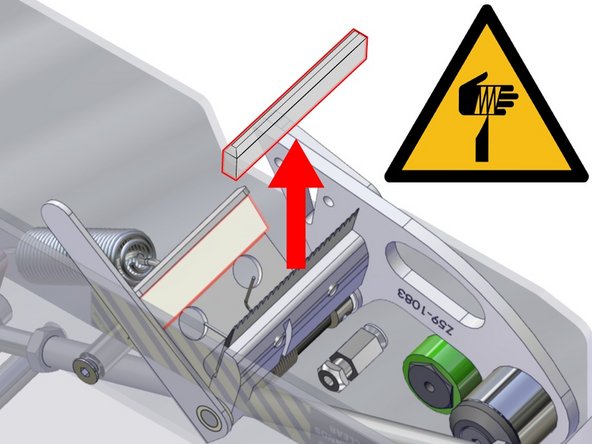

Carefully remove the plastic Blade Guard.
-
-
-
WARNING! SHARP BLADE!
-
NEVER use a blade to cut tape against the rollers.
-

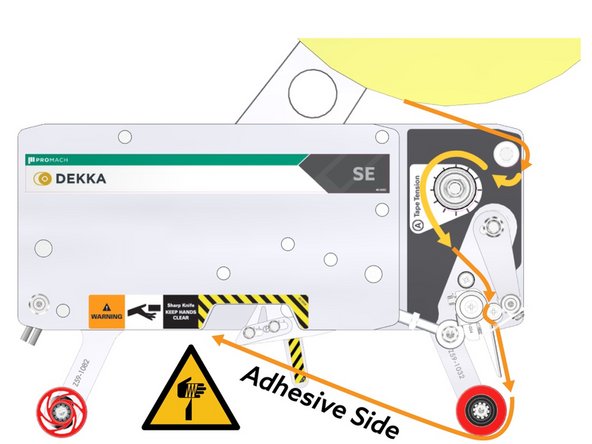

Thread the tape by following the guiding arrows on the tape head, then thread the tape around the Contact Roller.
-
Cut the threaded tape by pulling it across the tape head blade.
-
The Roller Arm will move in as you pull the tape across the blade.
-
-
-
Mount the Top Tape Head
-
Lower the pins of your tape head into the four mounting slots of the top holder.
-
Push back on the tape head to slide it into the slots.
-

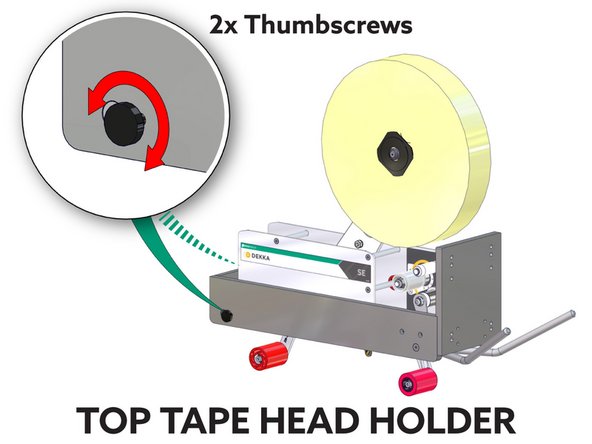

If the holder has two securing thumbscrews, ensure they are released before mounting and locked after mounting your tape head.
-

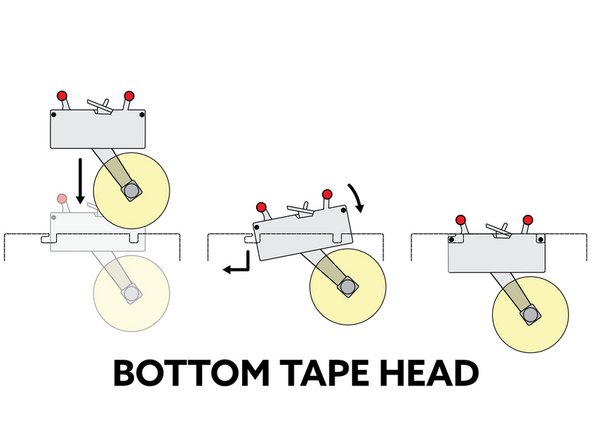

Mount the Bottom Tape Head
-
Lower the two rear pins of your tape head into the L-shaped slots of the bottom holder.
-
Gently pivot down your tape head into the remaining two slots.
-
