Introduction
Your Dekka SE V3.1 Tape Head can be loaded with a new tape roll without removing it from your machine. Two methods are used to load a new tape roll:
- Threading: Use this method if the roll has run out of tape or is being fed for the first time. To learn more, see Threading Your DEKKA SE V3.1 Tape Head.
- Splicing: Use this method if your tape head's roll is almost finished and is still threaded. Follow the steps below to learn more.
-
-
NEVER use a blade to cut tape against the rollers.
-
Cut between the roll and the threaded tape so that tape remains threaded in the tape head feed rollers.
-
-
-
Replace the old tape roll with a new one.
-
-
-

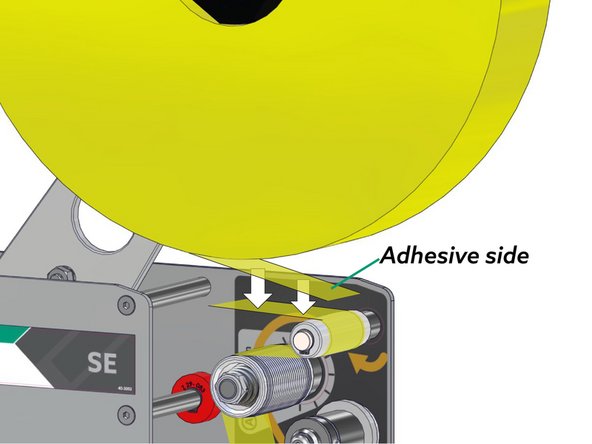

Stick the end of the new tape roll onto the tape remaining in the feed rollers.
-
-
-

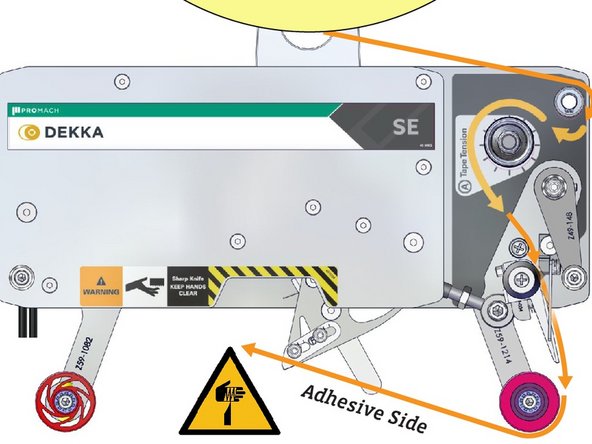

NEVER use a blade to cut tape against the rollers.
-
Pull the old tape, attached to the new tape roll, through the feed rollers.
-
Cut the threaded tape by pulling it across the tape head blade.
-
The Roller Arm will move in as you pull the threaded tape across the blade.
-
