Introduction

Jog Cycle mode is used for training purposes, troubleshooting, or verifying that a size change has been completed correctly.

  1. From the Main Control screen, touch Jog Control.
    • From the Main Control screen, touch Jog Control.

    • The Jog Control screen appears and the case former enters Jog Cycle mode.

  2. Touch Machine Cycle Jog. The case former advances to the next forming sequence.
    • Touch Machine Cycle Jog. The case former advances to the next forming sequence.

    • Continue advancing the case former with the Machine Cycle Jog button, or touch Main Control to exit Jog mode.

    • After each touch of the Jog button, the feedbelts remain on for 12 seconds while the drivebelts remain on for 15 minutes before timing out. Touch the Machine Cycle Jog button to return to ready status after a timeout.

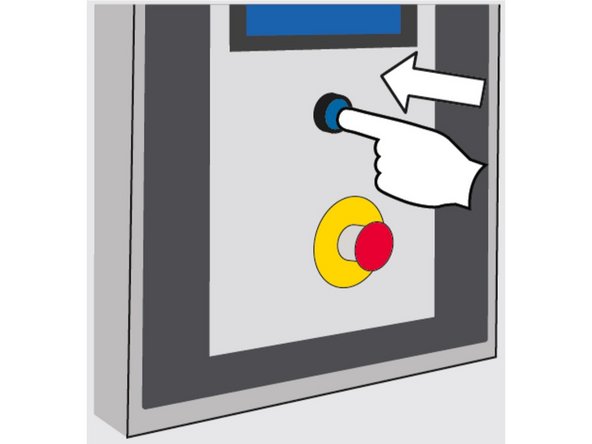

  3. Touch the Reset button. All components return to their Home position. When Ready appears on the HMI, the case former is ready for operation.
    • Touch the Reset button. All components return to their Home position. When Ready appears on the HMI, the case former is ready for operation.

Conclusion
